Technical details

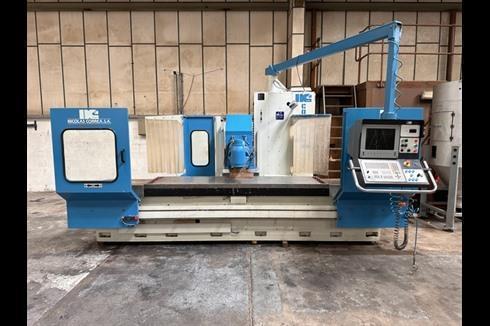

Correa CF22/25 Plus CNC Bed Milling Machine. Serial No. 9672507 (1999) with Heidenhain 426 Control, Table Size 2500 x 700mm, Travel X/Y/Z = 2000/800/800mm, Angles Swivel Spindle Head, Spindle Taper ISO50, Max Spindle Speed 4000rpm, Feed RAtes 5 - 5000mm/min, Rapids 12,000mm/min, 22kW Motor Power, Max Table Load 4000kgs, Machine Weight 9500kgs. Country of Origin: Spain
Location: These lots are located in Burton-on-Trent & Birmingham, UK. Please see individual lot for dismantling and loading charges.
Dealer: COTTRILL & ASSOCIATES LTD
Price request
