Technical details

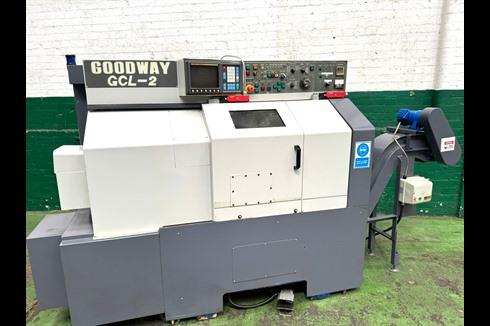

GOODWAY GCL-2 CNC Lathe with Fanuc OT Control. Year 1991
Swing over bed 400mm. Swing over cross slide 280mm. Maximum turning dia. 220mm. Maximum turning length 300mm. Distance between spindle node and turret face min/max 122mm/462mm. Spindle nose A2-5. Spindle speeds 45-4500 rpm. Spindle motor 7.5/11kW. Spindle bore 55mm. Spindle bore through draw tube 43mm. X/Z travel 135mm/340mm. Rapids X/Z 10m/12m per minute. 8 station turret. Coolant tank capacity 90 litres. Tailstock. Complete with swarf conveyor. Turret tooling. 2 x Collet chucks. Powered 3 jaw chuck. Tooling & manuals.
Machine dimensions L x W x H 2000mm x 1290mm x 1610mm. Approximate weight 2500kg.
Dealer: GM MACHINERY LTD
Price request
