XYZ - 100HD

XYZ - 100HD

Price request
  • BrandXYZ
  • Type/Model100HD
  • Stock Number30086
  • Year2021
  • Website100HD

Technical details

  • Table length1200 mm
  • Table width600 mm
  • Longitudinal X1100 mm
  • Cross Y610 mm
  • Vertical Z610 mm
  • Positions ATC30
  • Positions APC0
  • CNC BrandHeidenhain
  • CNC Modelx

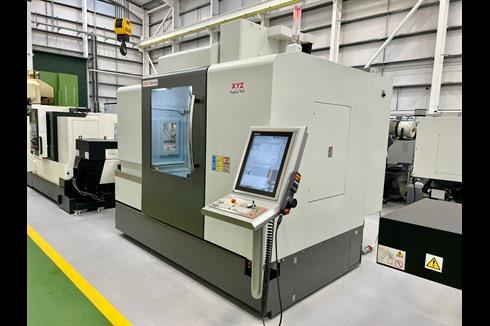

XYZ 1100HD Vertical Machining Centre with Heidenhain Control. Year 2021

Table size 1200 x 600mm. Travels X/Y/Z 1100/610/610mm. Spindle Centre to Column 675mm. Spindle to Table 150 – 760mm. Column Front to Table Centre 360 – 970mm. Rapid Feedrate 24 M/min. Cutting Feedrates 1 – 24,000 MM/min. Max Table Load 1,500kg. T Slot Size 18mm. T Slot Number & Pitch 4 off @ 125mm Pitch. Spindle Speeds 5 – 10,000 rpm. Spindle Motor 21kW (28hp). Spindle Taper BT40. Toolchanger 30 Station Arm type. Toolchange Time 2.5 secs. Max Tool Diameter 78mm. Max Tool Weight 8kg. Coolant Tank Capacity 240L.
Dimensions 3250 x 350 x 2810mm. Approx weight 7000Kg


Dealer: GM MACHINERY LTD
