XYZ - 1010

XYZ - 1010

Price request
  • BrandXYZ
  • Type/Model1010
  • Stock Number30066
  • Year2007
  • Website1010

Technical details

  • Table length1200 mm
  • Table width450 mm
  • Longitudinal X1010 mm
  • Cross Y500 mm
  • Vertical Z520 mm
  • Positions ATC20
  • Positions APC0
  • CNC BrandSiemens
  • CNC Model810D

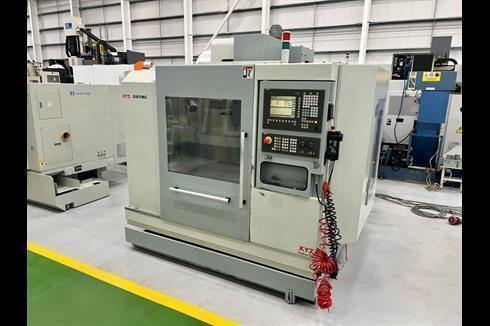

XYZ VMC1010 Vertical Machining Centre with Siemens 810D Shopmill Control. Year 2007


Table size 1200mm x 450mm. X/Y/Z travels 1010mm/500mm/520mm. Table loading 850kgs. Spindle Centre to column 625mm. Min/Max Spindle to Table 200mm/700mm. Min/Max Column front to Table Centre 345/905mm. Spindle speeds 60-8000 rpm. Spindle taper BT40. Spindle motor 11.18 kW. Feeds X/Y/Z to 24m/min. Rapids 24m/min. 20 Station ATC.
Machine dimensions L x W x H. 3000mm x 2440mm x 2600mm. Approx Weight. 6200kgs.

Dealer: GM MACHINERY LTD
