Technical details

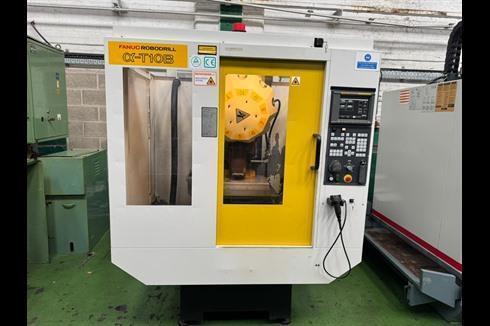

FANUC Robodrill Alpha T10B with Fanuc Control. Year 1995
Table size 500 mm x 380 mm. Max Loading Capacity 149 kg. X/Y/Z travels 508/378/300mm. Rapids 36/36/30m/min. Min/Max Distance from Spindle Nose to Table 140 /409 mm. Spindle Taper BT35. Spindle Speed 60 – 8000 rpm. Tool Changer Capacity 10 +1. Tool Change Time 1.1 Seconds Chip to Chip. Spindle Drive Motor 5.6kW. Manual Pulse Generator. Interlocking Guards. Coolant
Overall Dimensions L x W x H 1955mm x 2667mm x 2413 mm Weight 1700 kg
Dealer: GM MACHINERY LTD
Price request
