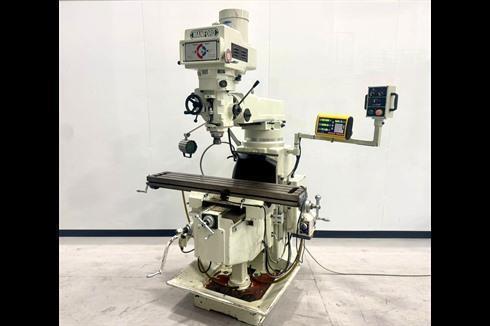

Technical details
Table size 1370mm x 250mm. T Slot No. & Size 3 x 0.629mm. Longitudinal travel 870mm. Cross travel 410mm. Travel of knee 450mm. Ram travel 560mm. Quill travel 127mm. Min/Max spindle nose to table 85mm/535mm. Swivel of turret 360°. Head swivel (right to left) +/- 45°. Min/Max Spindle to column 178mm/738mm. Spindle motor 5HP. Spindle taper 40 ISO. Quill feeds 0.004mm, 0.08mm & 0.14mm/rev. Spindle speeds (infinitely variable) 40 – 3600 rpm. Fitted with inf.var longitudinal powered feed. 3 axis Digital readout. Pendant Control
Machine dimensions L x W x H 1840mm x 2120mm x 2375mm. Approximate weight 1600kg.
